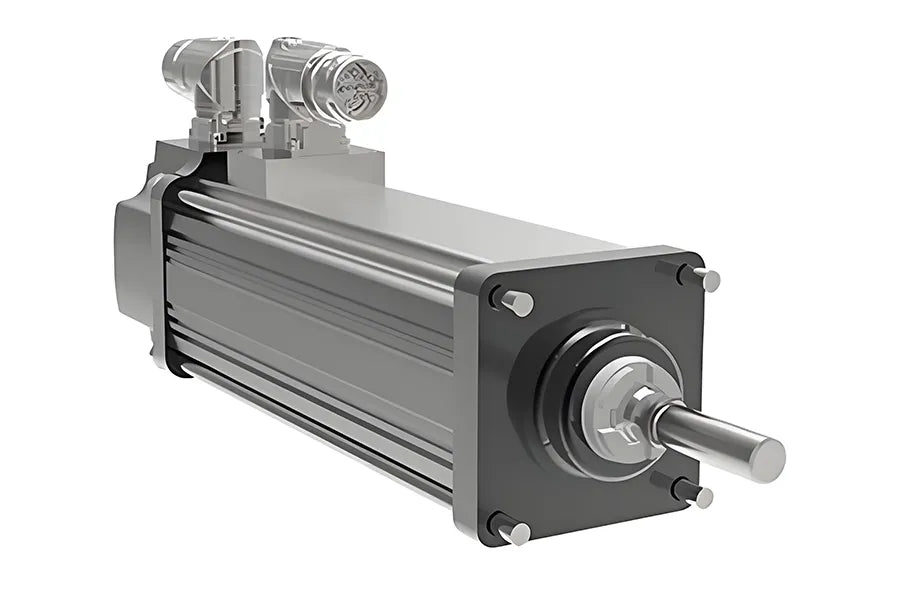

In modern industrial automation systems, precise linear motion control is crucial for achieving high-efficiency, high-precision production. Lead screw actuators, as transmission mechanisms that convert rotational motion into linear motion, are widely used in automated production lines, precision machining equipment, and inspection systems due to their simple structure, high precision, and affordable cost.
1. Working Principle and Structure of Screw Actuators
Screw actuators primarily consist of a screw, nut, guide mechanism, drive motor, and fixed base. The operating principle is: the motor rotates the screw, and the meshing of the screw threads with the nut converts the rotational motion into linear displacement, enabling actions such as pushing, pulling, lifting, and positioning.
2. Key Application Scenarios
2.1 Assembly Lines
In automated assembly lines in industries such as automotive, electronics, and home appliances, lead screw actuators are used to move workpieces, position components, or perform fixture operations. For example, during the assembly of electronic components, lead screw actuators can precisely move the worktable, enabling accurate insertion and screw tightening.
2.2 CNC Machine Tools and Processing Equipment
In CNC milling machines, engraving machines, laser cutting machines, and other equipment, lead screw actuators perform core linear motion tasks. With positioning accuracy reaching micrometers, they ensure high consistency in cutting paths and processed shapes, thereby improving product quality.
2.3 Inspection and Measurement Systems
In automated inspection equipment, lead screw actuators are often used to move sensors, inspection probes, or test platforms. For example, in optical inspection, actuators can precisely adjust the lens position, enabling multi-angle and micro-distance inspection of products.
2.4 Packaging and Sorting Systems
In the food, pharmaceutical, and logistics industries, lead screw actuators are used to drive push rods, sorting arms, and packaging presses, enabling fast and smooth material handling. For example, in automatic cartoning machines, lead screw actuators precisely press the forming plate into cartons, ensuring packaging quality.
2.5 Medical and Laboratory Equipment
In medical automation equipment such as surgical robots, micromanipulators, and medication dispensing systems, lead screw actuators achieve smooth, impact-free micro-displacement, ensuring safe and precise operation.
3. Advantages of Lead Screw Actuators
3.1 High Positioning Accuracy
Lead screw actuators offer stable pitch and high machining accuracy. Combined with high-resolution stepper or servo motors, they can achieve micron-level positioning.
3.2 Compact Structure and High Adaptability
The overall structure is simple, allowing for easy integration into various automation systems. The stroke, lead, and mounting method can be customized as needed.
3.3 Strong Self-Locking Capability (Acme Lead Screw)
The lead screw maintains position even when powered off, eliminating the need for an additional braking system and making it suitable for applications requiring long-term fixed position.
3.4 Low Maintenance Cost
Wear on lead screw actuators is primarily concentrated on the threaded contact surface. Proper lubrication can extend the life of the actuator, extending maintenance intervals.
4. Selection Key Points
When selecting a screw actuator for an industrial automation project, the following factors should be considered comprehensively:
- Load and Thrust: Calculate the actuator thrust based on the workpiece weight and the required acceleration.
- Stroke and Speed: A larger lead results in faster speed but lower thrust, while a smaller lead results in the opposite.
- Precision and Repeatability: Ball screw actuators are recommended for high-precision applications.
- Environmental Conditions: Stainless steel or protective designs should be used for high-temperature, high-humidity, or corrosive environments.
- Drive Method: Match it with a stepper motor or servo motor to ensure the required torque and speed.
Summary
Screw actuators, as stable, reliable, and precise linear motion solutions in industrial automation, have played an important role in various fields, including assembly and machining.
