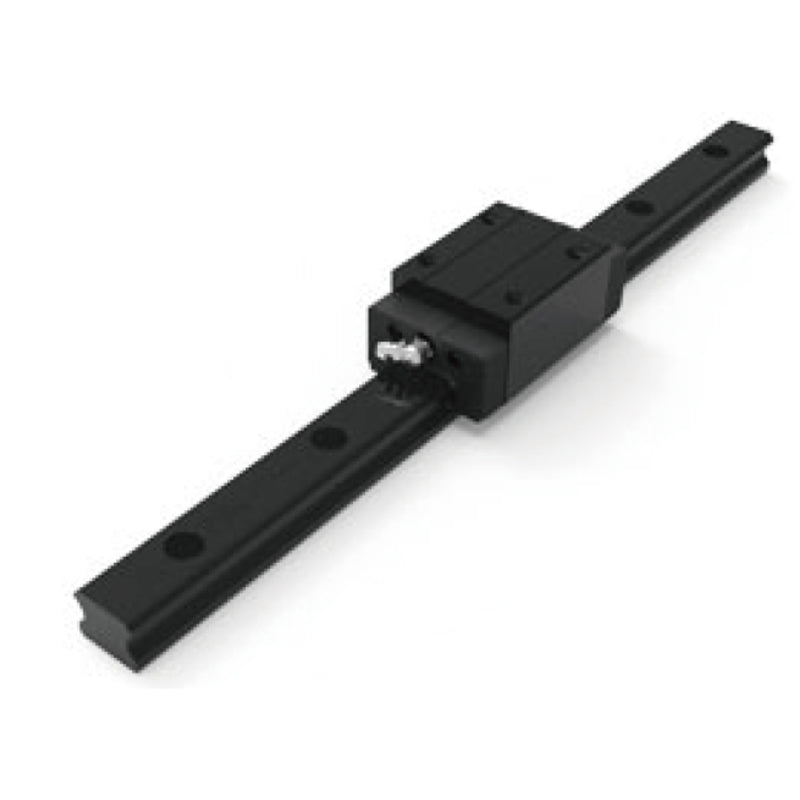

Linear Guideway - Surface Treatment
Linear Guideway - Surface Treatment
"Surface Treatment" improves corrosion resistance without affecting the precision of the linear guide, while also changing the appearance color.
View full details
Product Features
√Improved corrosion resistance
√Does not affect linear guide accuracy
√Change the appearance
Installation
-

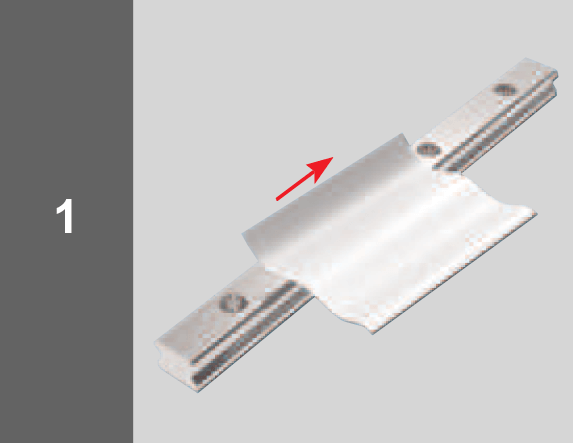

Clean rail surface before installation.
-

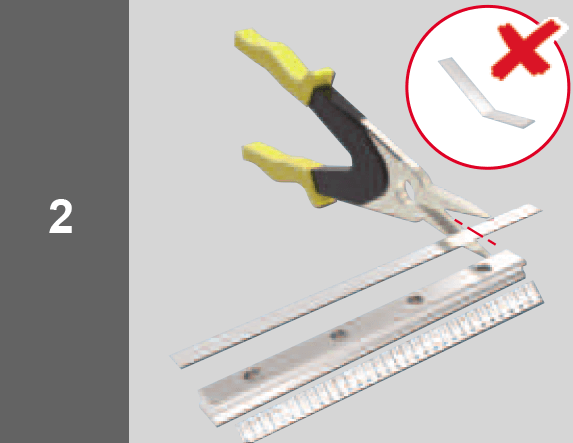

When cutting, make the cover stripe 1~3mm shorter than the guide rail.
The cover stripe cannot be bent.
-

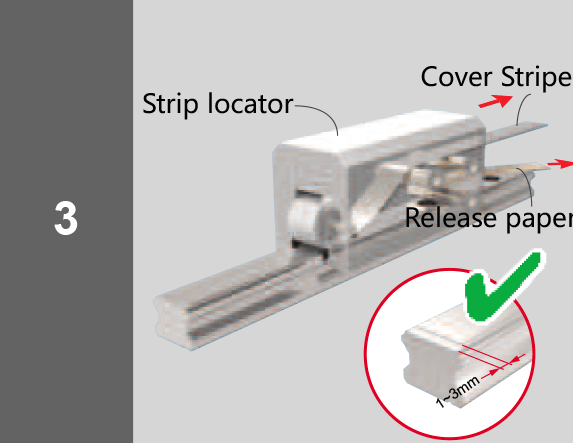

Use the strip locator to install the cover stripe.
The cover stripe cannot be bent. -

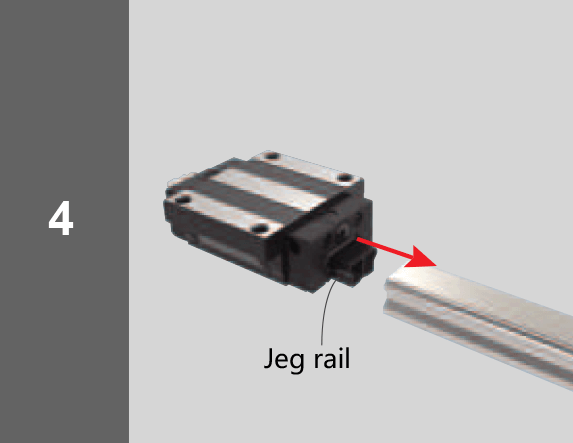

Use Jeg rail mounting.
-

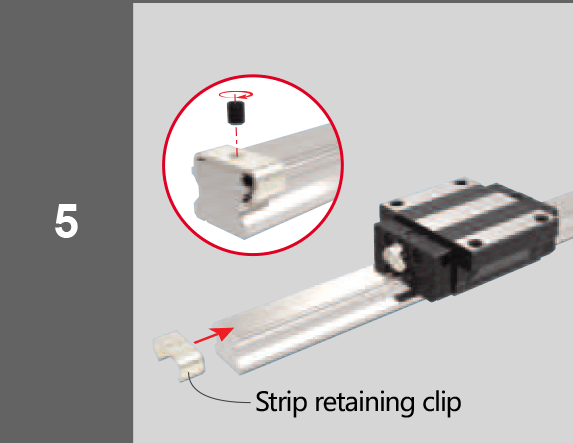

Insert strip retaining clip into the guiderail and bolt it tight.
-

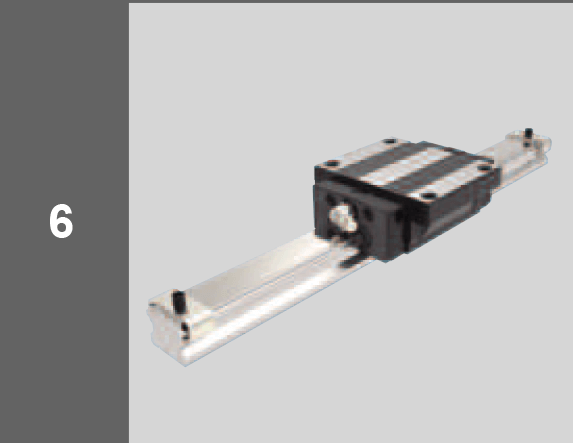

Complete
3 types of Treatment
-

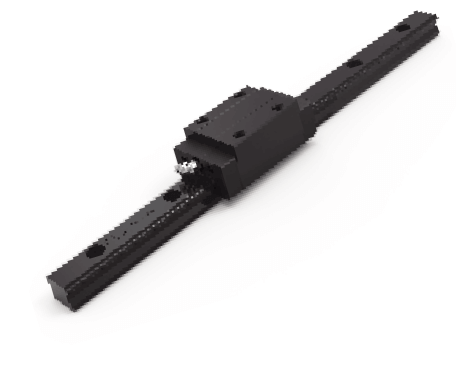

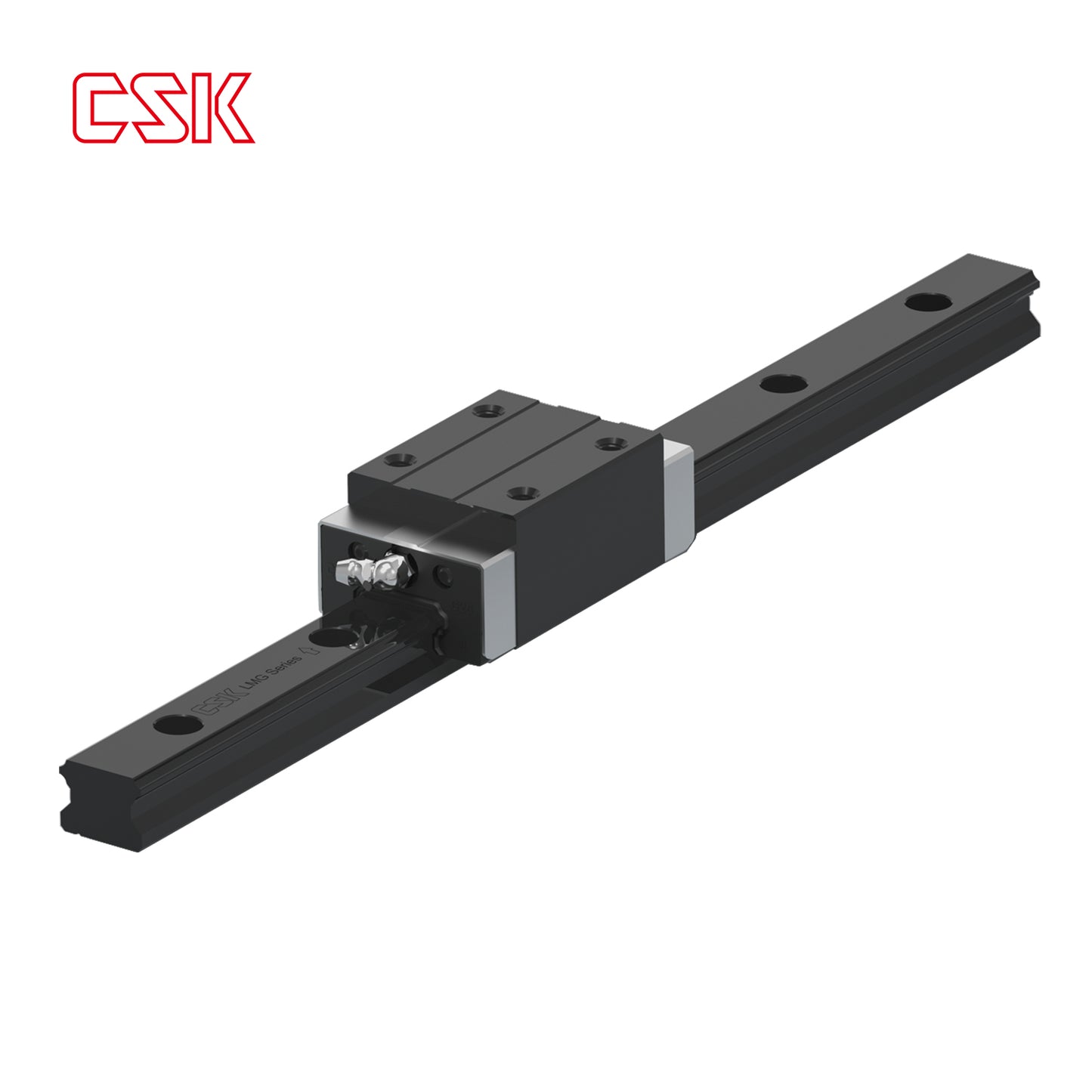

Industrial Black Chrome Coating
-

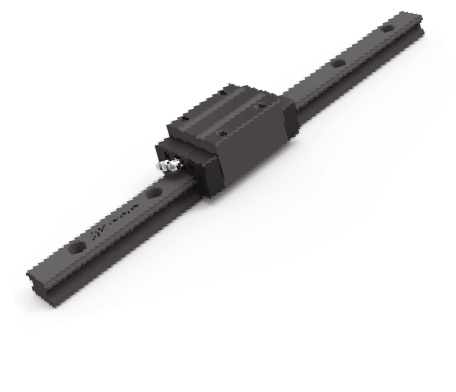

Manganese Phosphate Coating
-

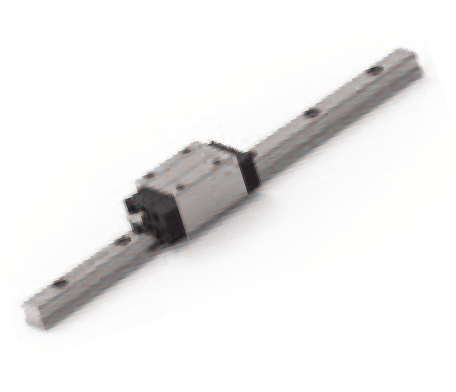

Primary Chrome Coating

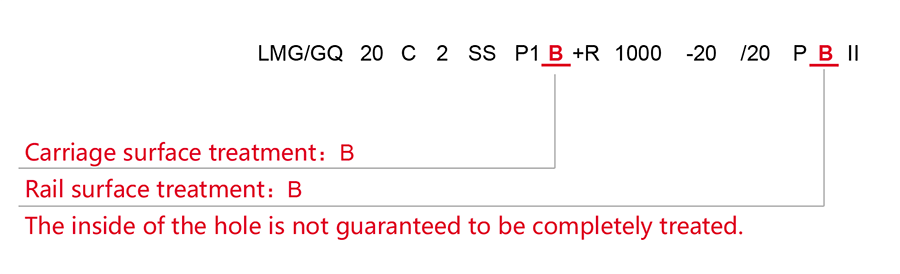

Specification Model

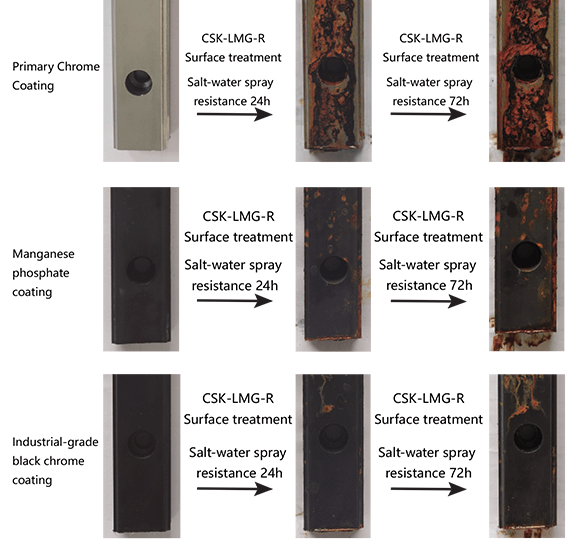

Corrosion Resistance Test
| Item | Test Parameters |
| Saline Concentration | 5% NaCl solution |
| PH | 6.9 |
| Experimental Temperature | 35° |
| Experimental Relative Temperature | 85%RH |
| Sample Placement Angle | 20° |
| Smoke Collection Volume | 1.5ml (80c㎡/H) |
