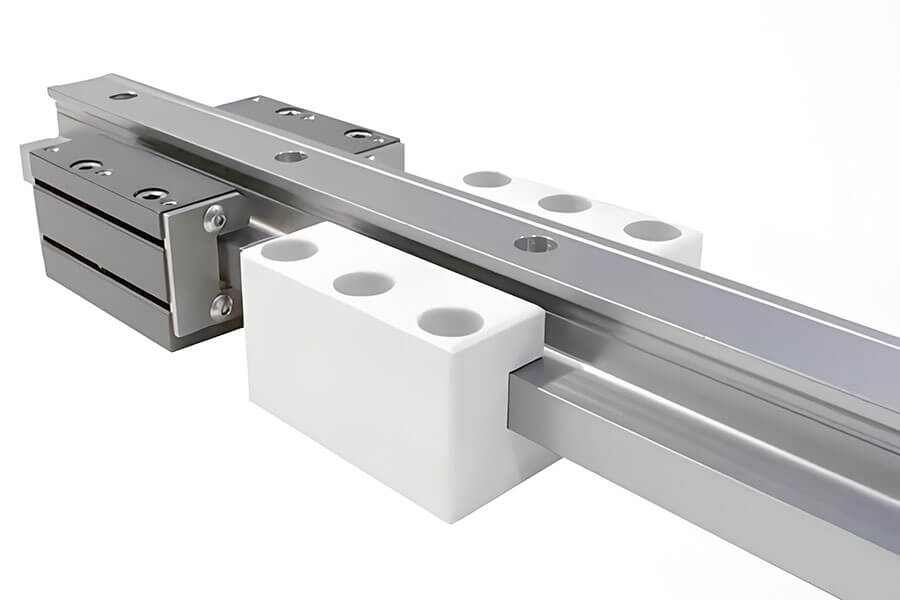

Linear motion slidess are core components of precision machinery. Failure can impact the performance of the entire machine. This article identifies common issues encountered during guide rail operation, providing step-by-step guidance to quickly identify potential problems and minimize downtime losses.
1. The Correlation Between Abnormal Noise and Insufficient Lubrication
A harsh, grinding noise is an early sign of guide rail failure, often caused by insufficient lubrication or impurities. During inspection, shut down the machine and clean the guide rail surface with a dust-free cloth to ensure even grease distribution. If the guide rail is partially dry, it may indicate a clogged grease hole or aging grease. A specialized cleaning agent should be used to clear the oil passage.
The choice of grease directly affects the frequency of abnormal noise. High-temperature environments require a high-viscosity grease, while high-speed applications recommend a lubricant containing PTFE. Weekly visual inspections of the oil film and relubrication every three months can reduce the likelihood of abnormal noise by 80%.
2. Troubleshooting Causes of Operational Stalls
If the linear motion slides experiences jerking during movement, first check for a failure in the slider preload. Use a dial indicator to measure the slider clearance; the standard value should be 0.01-0.03mm. When the preload spring sheet breaks or the ball bearing wears, uneven pressure on the contact surface between the ball and the rail results in a jerky motion.
Installation errors are a hidden cause of jamming. Use a laser interferometer to check the parallelism of the guide rails. If the height difference between the two rails exceeds 0.05 mm/m, re-leveling is required. Pay special attention to deformation caused by foundation settlement. It is recommended to recheck the installation reference surface using a marble platform quarterly.
3. Culprits of Decreased Accuracy
When positioning repeatability is out of tolerance, first eliminate external factors: check whether the motor coupling is loose and whether the drive belt tension is within the specified range. Use a laser tracker to plot the motion trajectory. If the waveform shows periodic fluctuations, it is usually due to indentations or rust on the guide rail raceway.
Internal wear can be diagnosed through ferrography. Collect metal particles from the lubricating oil and observe their morphology under a microscope: flaky debris indicates contact fatigue, while spherical particles indicate ball fracture. When wear exceeds 0.5% of the guide rail width, the entire slider assembly must be replaced.
4. Preventative Measures for Abnormal Wear
Eccentric load wear is the most common failure mode. When calculating actual load torque, include the inertial force generated by acceleration. It is recommended that the working load not exceed 70% of the rated value. Hydraulic buffers should be installed for impact loads. Use a torque wrench to confirm the preload of the mounting bolts, with an error within ±5%.
Dust-proof design can triple the lifespan. In dusty environments, use sliders with double-brush seals and labyrinth-style protective covers. Use compressed air (pressure ≤ 0.3 MPa) weekly to clean rail joints, and use acetone monthly to clean seal buildup. Environments with humidity >80% require additional rust-proof coating maintenance.
5. Develop a Systematic Maintenance Plan
Establish a three-tiered maintenance system: daily inspections to focus on lubrication and abnormal noise; monthly maintenance to measure clearance and parallelism; and annual overhauls to replace seals and perform load tests. It is recommended to use IoT vibration sensors and implement predictive maintenance through spectrum analysis. Fault Tree Analysis (FTA) tools can improve troubleshooting efficiency. Break down guide rail issues into three main components: mechanical, electrical, and environmental, with quantitative testing criteria set for each node. Establish a historical fault database and use machine learning to predict spare part replacement cycles, reducing the economic losses caused by unexpected downtime.
Summary
Linear motion guides are critical components of high-precision machinery. Common faults include binding, abnormal noise, reduced accuracy, excessive wear, and loose slides. By promptly identifying the cause and implementing appropriate solutions, you can effectively extend the life of the guides and ensure stable equipment operation.
