CSK offers a wide range of linear motion solutions, along with a cross-reference guide designed to help customers find alternatives to HIWIN linear guides. For example, the HIWIN HGW20CC corresponds to the CSK LMG20C; HGH25CA to LMG25H; EGH20CA to LMG20T; MGN12C to LMN12T; and RGW30CC to LMR30C.
These cross-references serve as a guide for evaluating CSK linear guides as potential alternatives. Before finalizing your selection, please be sure to verify parameters such as mounting dimensions, load ratings, accuracy classes, preload, and operating conditions to ensure the product meets the specific requirements of your application.
1. HIWIN to CSK Linear Guide Model Comparison Table

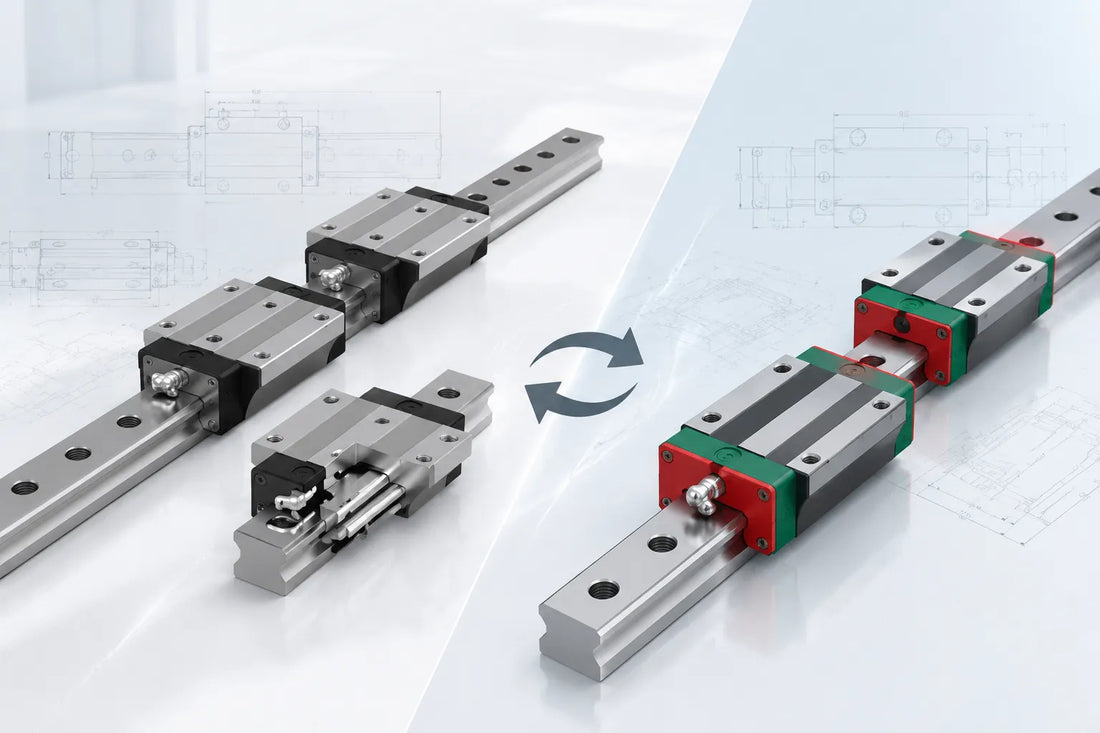

The table below summarizes 10 common models of HIWIN linear guides that correspond to CSK equivalents. For more information, please see: CSK vs HIWIN.
| No. | HIWIN Model | CSK Reference Model | Guide Type | Combined Height (mm) | Slider Width (mm) |
|---|---|---|---|---|---|
| 1 | HGW20CC | LMG20C | Flange-type, high-assembly ball guide | 30 | 63 |
| 2 | HGH25CA | LMG25H | Square-type, high-assembly ball guide | 40 | 48 |
| 3 | EGH20CA | LMG20T | Square-type, low-assembly ball guide | 28 | 42 |
| 4 | EGH25SA | LMG25ST | Square-type, low-assembly extended block | 33 | 48 |
| 5 | EGW20CA | LMG20TC | Flange-type, low-assembly ball guide | 28 | 59 |
| 6 | MGN12C | LMN12T | Miniature guide, standard rail | 13 | 27 |
| 7 | MGW12C | LMNW12T | Miniature guide, wide rail | 14 | 40 |
| 8 | QEH20CA | LMGQ20T | Low-assembly guide with ball chain | 28 | 42 |
| 9 | RGW30CC | LMR30C | Flange-type, high-assembly roller guide | 42 | 90 |
| 10 | RGH30CA | LMR30H | Square-type, high-assembly roller guide | 45 | 60 |
Source: CSK model comparison table. Dimensions are the combined height and slider width reported in that table, in millimeters. Confirm the detailed drawings and specifications for the exact configuration before ordering.
The table covers several common guide configurations, from standard ball-type linear guides to miniature guides and roller-type guides. The appropriate alternative depends on the original model, mounting arrangement, load requirements, and operating conditions.
2. How to Choose the Right CSK Alternative
Not every linear guide is suitable for every application. Understanding the original HIWIN model's configuration helps narrow down the appropriate CSK option.
2.1 HG Series: High-Assembly Ball-Type Linear Guides
The HIWIN HG family includes flange-type and square-type configurations designed for applications requiring rigidity and load-bearing capability.
Two reference pairs are:
- HGW20CC → CSK LMG20C: A flange-type configuration.
- HGH25CA → CSK LMG25H: A square-type configuration.
CSK's LMG series linear guide uses four rows of steel balls with a 45-degree contact angle. Its design supports loads in four directions and incorporates a self-aligning feature to accommodate certain assembly errors.
For CNC equipment, automation machinery, and precision positioning systems, the LMG series is a potential candidate when evaluating alternatives to comparable ball-type guides.
However, the guide size and block style alone do not establish equivalent load ratings, accuracy, or preload.
2.2 EG Series: Low-Assembly Linear Guides
Low-assembly guides are often considered when equipment designers need to reduce installation height or fit linear motion components into a limited space.
CSK's comparison table lists the following examples:
- EGH20CA → CSK LMG20T
- EGH25SA → CSK LMG25ST
- EGW20CA → CSK LMG20TC
The EGH configurations use square-type blocks, while the EGW configuration uses a flange-type block.
When evaluating these alternatives, check the available installation height, block mounting holes, rail dimensions, and clearance around adjacent machine components.
The EGH25SA and LMG25ST pairing is particularly worth checking when the original specification calls for the extended-block configuration. The replacement must retain the required mounting arrangement and functional performance.
2.3 MG Series: Miniature Linear Guides
Miniature linear guides are used in compact mechanisms, small automation equipment, precision instruments, and other systems where installation space is limited.
Two reference pairs are:
- MGN12C → CSK LMN12T
- MGW12C → CSK LMNW12T
The main distinction is the rail configuration: MGN belongs to the standard-rail miniature family, while MGW belongs to the wide-rail family.
CSK's LMN series is designed for compact, lightweight applications requiring smooth motion and precision. The LMNW series provides a wider miniature-guide configuration.
A wide rail may offer a different support arrangement, but a wider profile does not automatically guarantee suitability for a particular load or moment requirement. Compare the actual load ratings, rail geometry, and mounting dimensions before making a selection.
2.4 QEH Series: Low-Assembly Guides with Ball Chains
The published comparison table lists HIWIN QEH20CA → CSK LMGQ20T.
CSK's LMGQ series incorporates a ball-linkage design intended to reduce contact and collision between rolling elements, improve lubricant storage, and reduce operating noise.
This series may be worth evaluating for applications where smooth movement, noise control, and reliable linear guidance are important.
The comparison should include the original guide's load ratings, accuracy, preload, lubrication requirements, and operating speed—not just its nominal size.
2.5 RG Series: Roller-Type Linear Guides
Roller-type guides use cylindrical rollers rather than steel balls as their rolling elements. The larger contact area can provide higher load capacity and rigidity in suitable configurations.
Two reference pairs are:
- RGW30CC → CSK LMR30C
- RGH30CA → CSK LMR30H
CSK's LMR series roller linear guide is designed for demanding applications requiring high rigidity and load-bearing capacity, including heavy-duty machinery and industrial automation.
Roller guides should not be treated as interchangeable with ball guides simply because their dimensions appear similar. The rolling-element type affects load ratings, friction, stiffness, and other operating characteristics. A replacement should be selected according to the application's actual performance requirements.
3. What Should You Check Before Replacing a HIWIN Linear Guide?
A model comparison table is a useful starting point, but it is not a substitute for engineering verification.
Before replacing a HIWIN linear guide with a CSK alternative, review the following parameters.
3.1 Mounting Dimensions
Compare the complete installation drawings, including:
- Rail width and rail height
- Block dimensions and combined assembly height
- Mounting-hole diameter and pitch
- Mounting-hole depth and fastening method
- Rail length and end dimensions
- Block mounting-hole arrangement
Matching the combined height and slider width is not sufficient to confirm that a replacement will fit the existing machine.
3.2 Load Capacity and Rigidity
Check the required dynamic and static load ratings, moment load capacity, and stiffness.
The replacement must support the actual forces and moments generated by the moving assembly, workpiece, cutting forces, acceleration, and operating cycle.
For roller-type guides, pay particular attention to the original design's load and rigidity requirements.
3.3 Accuracy and Preload
Confirm the required accuracy grade, preload class, running resistance, and positioning performance.
A guide with a similar external profile may have different internal specifications. These differences can affect positioning accuracy, friction, vibration, and service life.
3.4 Rail and Block Compatibility
Do not assume that a CSK slider can be installed directly on a HIWIN rail, or vice versa.
Even when two models appear dimensionally similar, differences in raceway geometry, ball or roller circulation, manufacturing tolerances, preload, and sealing can prevent reliable cross-brand mixing.
For a replacement project, evaluate the complete rail-and-block assembly and obtain technical confirmation where necessary.
3.5 Operating Conditions and Maintenance
Consider operating speed, acceleration, duty cycle, contamination, temperature, lubrication method, and maintenance intervals.
For example, a guide operating in a dusty machining environment may require a different sealing or protection arrangement from one used in a clean precision instrument.
The best alternative is the one that meets the machine's mechanical and operational requirements, rather than simply matching a model number.
4. Why Consider CSK as an Alternative Linear Guide Supplier?
At CSK, we provide a range of linear motion solutions for CNC machines, industrial automation systems, and precision equipment. Our product portfolio includes ball-type linear guides, miniature linear guides, ball-chain guides, and roller-type linear guides to meet different application requirements.
Why consider CSK for your linear guide requirements?
- A Wide Range of Models: Our LMG, LMN, LMNW, LMGQ, and LMR series cover different guide configurations, sizes, and application needs.
- Cost-Effective Sourcing Options: We offer an additional option for customers looking to balance product performance, purchasing costs, and sourcing flexibility.
- Application-Based Model Selection: We help customers evaluate suitable linear guide configurations based on mounting dimensions, load requirements, accuracy, and operating conditions.
- Support for Replacement Projects: Our HIWIN model comparison reference helps customers identify potential CSK alternatives and narrow down their options.
For distributors already supplying HIWIN linear guides, adding CSK to your product portfolio may create opportunities to serve customers with different budgets and sourcing requirements. For OEMs and equipment manufacturers, our linear guide solutions provide additional options to evaluate during product development, equipment maintenance, and supplier selection.
Looking for a CSK alternative to a specific HIWIN model? Visit our CSK vs. HIWIN model comparison page or contact our team with your model number and technical requirements. We can help you identify a potential alternative and review the specifications needed for your application.
Conclusion
To find a suitable alternative for HIWIN linear guides, you must first determine the correct model series and configuration. The CSK product comparison table provides a useful reference for the HG, EG, MG, QEH, and RG series.
Need assistance in finding a CSK alternative for your HIWIN model? Please visit the CSK website or contact the CSK team, providing your original model number, technical drawings, and application requirements so that an appropriate configuration can be discussed.
5. Frequently Asked Questions
Q1. What is the CSK alternative to HIWIN HGW20CC?
The reference alternative to HIWIN HGW20CC is CSK LMG20C. Verify the complete mounting dimensions, accuracy, preload, load ratings, and operating requirements before replacement.
Q2. What is the CSK alternative to HIWIN MGN12C?
The listed CSK reference model for HIWIN MGN12C is LMN12T, from the miniature linear guide family. Confirm rail and block dimensions and performance requirements before ordering.
Q3. What is the difference between CSK LMN and LMNW miniature guides?
LMN is CSK's standard-rail miniature guide family, while LMNW is its wide-rail miniature guide family. The correct selection depends on installation geometry, load distribution, moment requirements, and the available mounting space.
Q4. Can I install a CSK linear guide block on an existing HIWIN rail?
Do not assume direct cross-brand compatibility. Similar model numbers or external dimensions do not establish compatibility between the rail, block, and rolling elements. Confirm the complete technical specifications before attempting a replacement.
Q5. Are CSK and HIWIN linear guides identical in performance?
The comparison table identifies corresponding model references, but it does not establish that every pair has identical load capacity, accuracy, preload, stiffness, or service life. Compare the relevant technical data for the specific configurations and application.
