Custom Ball Screw

Custom Ball Screw Considerations

What factors should be considered when selecting a custom ball screw? For the majority of users, when selecting a ball screw, it is often necessary to clarify the corresponding selection methods and techniques. When making a selection, the selection items should be clearly defined, mainly including the type of screw, application, considerations, etc.

Types and Applications of Screws

The screw is a cylinder with a spiral groove, which realizes the conversion of linear motion or rotational motion by cooperating with the nut. According to its structure and working principle, the screw can be divided into ordinary screw, trapezoidal screw, ball screw and other types.

Ordinary Screw

Ordinary screw is the most basic type of screw, with a simple structure, easy manufacturing and low cost. However, due to the large friction resistance, the transmission efficiency is relatively low, which is suitable for some occasions where the transmission accuracy is not high.

Trapezoidal Screw

The trapezoidal screw has a self-locking function, that is, when the nut is subjected to axial force, it will not automatically retract. This makes the trapezoidal screw widely used in some occasions where reverse transmission needs to be prevented, such as elevators, jacks, etc.

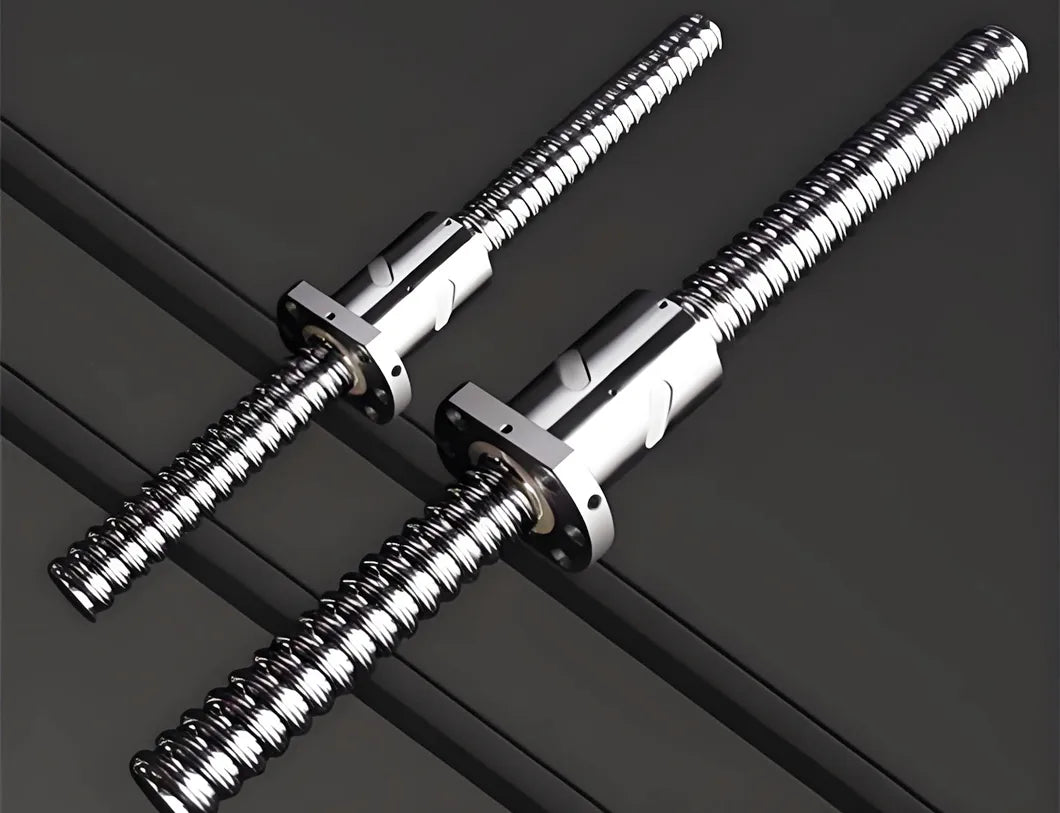

Ball Screw

The ball screw is the focus of this article. Its structure and working principle will be introduced in detail below. Ball screws have the advantages of high transmission efficiency and high precision. They are widely used in high-precision transmission fields such as CNC machine tools and automated production lines.

Custom Ball Screw
Custom Ball Screw Considerations

Selection and Calculation of Ball Screws

The ball screw consists of a screw, a nut and a ball. When working, the ball rolls between the spiral grooves of the screw and the nut, converting rotational motion into linear motion, or converting linear motion into rotational motion. Since the rolling friction of the ball is much smaller than the sliding friction, the ball screw has the advantages of high transmission efficiency, low wear and long life.

Selection of Ball Screws

There are several aspects to consider when choosing a custom ball screw:
Load: Select the appropriate screw specification according to the actual working load to ensure that the screw has sufficient load-bearing capacity and stiffness.
Accuracy: Select the appropriate screw accuracy grade according to the transmission accuracy requirements to ensure that the transmission accuracy meets the requirements.
Speed: Select the appropriate screw lead and speed according to the actual working speed to ensure smooth and vibration-free transmission.
Installation Space: Select the appropriate screw length and installation method according to the actual installation space to ensure that the screw can be installed smoothly and work stably.

Custom Ball Screw Calculation

The calculation of ball screw mainly includes the following aspects:
Transmission Efficiency Calculation: Transmission efficiency is one of the important indicators for evaluating the performance of ball screw. By calculating the transmission efficiency, we can understand the energy loss of the ball screw during the transmission process, which provides a basis for optimizing the transmission system.
Life Calculation: Life calculation is an important method for evaluating the service life of ball screw. By calculating the rated dynamic load and rated static load of the ball screw, we can predict the service life of the ball screw under specific working conditions.
Stiffness Calculation: Stiffness is one of the important factors affecting the transmission accuracy of ball screw. By calculating the axial stiffness and radial stiffness of the ball screw, we can understand the deformation of the ball screw when it is subjected to force, which provides a basis for optimizing the transmission system.

Summary

When choosing a custom ball screw, comprehensively considering the above factors can ensure that the selected product can meet specific application requirements and provide the best performance and reliability. Communication and collaboration with suppliers is also critical to ensure all requirements are met.

If you have related needs, please contact us immediately and we will provide you with the best offer!
