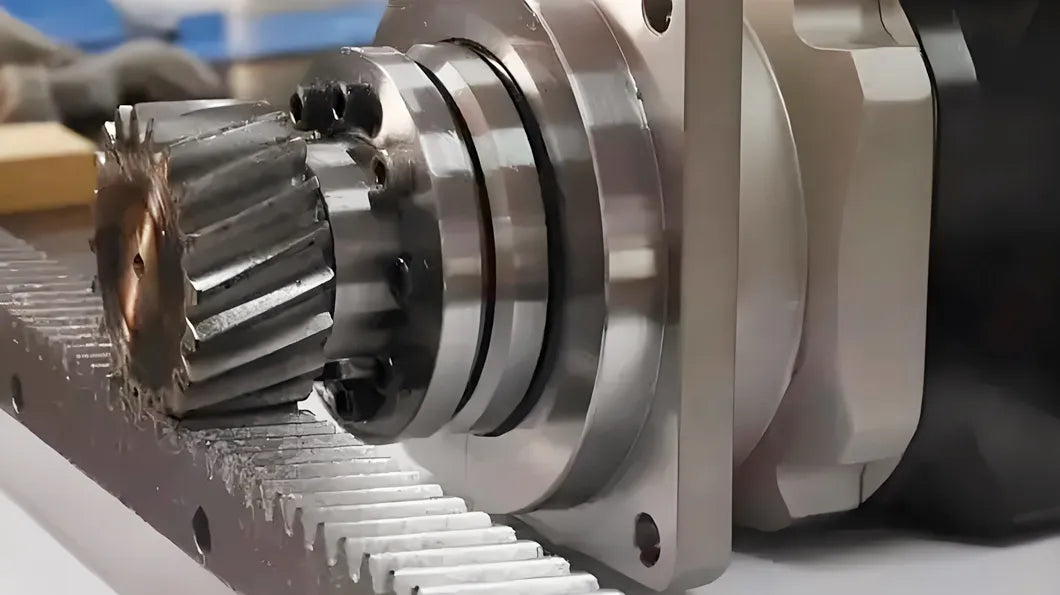

Precision Gear Rack

How to Increase the Output Speed of Precision Gear Rack?

The output speed of a precision gear rack refers to the linear speed achieved through the gear and rack transmission system. The gear and rack have their own unique movement characteristics during the transmission process, the gear transmission is used to transmit motion and power between any two axes, its circumferential speed can reach 300m/s, the transmission power can reach 105KW, and the gear diameter can range from less than 1mm to more than 150m.

1. Precautions

Transmission Efficiency: In actual applications, the efficiency of gear transmission (such as friction loss) will affect the output speed.
Load Conditions: Under different load conditions, the deformation of the gear and rack may affect the actual output speed.
Movement of the Rack: The output speed usually refers to the linear speed of the rack, not the angular speed of the gear.

2. Precision Gear Rack Features

Increasing the output speed of a precision rack can be achieved in many ways, depending on the design, material, transmission system and application scenario of the rack.
Advantages of Precision Gear Rack Transmission: long life, stable operation, high reliability; can ensure a constant transmission ratio, and can transmit motion between two axes at any angle.
Disadvantages of Precision Gear Rack Transmission: high manufacturing and installation precision requirements, so the cost is also high; not suitable for long-distance transmission.

Precision Gear Rack
How to Increase the Output Speed of Precision Gear Rack?

3. Common Methods

  • Improve the Performance of the Drive Motor

Choose a High-Speed Motor: Using a higher-speed motor can directly increase the output speed.
Use a Frequency Converter to Control the Motor: The frequency converter can adjust the speed of the motor to adapt to different working requirements.
Choose the Right Motor Type: Such as brushless DC motors or stepper motors, because their speed is more controllable.

  • Optimize the Transmission System

Gear Ratio: Use a suitable gear transmission system. By changing the gear ratio, the output speed can be increased. However, it should be noted that increasing the speed may also reduce the output torque.
Reduce Friction: Ensure that components such as drive chains and bearings run smoothly, reduce friction losses, and thus improve overall efficiency.

  • Precision Gear Rack Design Optimization

Gear Ratio Design: Design a smaller drive gear to increase the relative transmission ratio, thereby increasing the speed.
Rack Material: Choose materials with higher strength and lighter weight to reduce unnecessary loads.

  • Control Strategy

Closed-Loop Control: Using a feedback control system (such as an encoder), the output of the motor can be adjusted in real time to improve system accuracy and response speed.
Acceleration Strategy: The acceleration process of the motor can be optimized in software, and a faster acceleration curve can be used to achieve the required speed.

  • Maintenance and Care

Regular Maintenance: Ensure the cleanliness of the gear and rack system, lubricate it regularly, and ensure that all components are working properly and are not worn or damaged.
Reduce the Load: Check the system load to ensure that it does not exceed the load-bearing capacity of the rack and gear. Excessive load will affect the speed.

  • Design Requirements and Standards

When designing precision gear racks, use components that meet relevant industrial standards (such as ISO or DIN standards) to improve operating efficiency and reliability.

  • Experiments and Tests

Monitor the system in real time, record data such as speed, load, efficiency, and adjust the system in time to optimize performance.

Summary

When trying to increase the output speed of precision gear racks, pay attention to the coordination of the overall system to ensure that increasing the speed will not affect accuracy, stability and safety. Engineers usually design appropriate solutions and strategies based on specific application requirements. It is recommended to conduct sufficient demonstration and testing before implementing the solution to ensure the feasibility and effectiveness of the selected solution.

If you have related needs, please contact us immediately and we will provide you with the best offer!
