In modern machinery manufacturing and automation equipment, high-precision, high-efficiency drive systems are crucial for ensuring stable operation. LM guides, due to their high precision, high rigidity, and long life, are core components of these drive systems. This article will detail the definition, operating principle, technical advantages, installation and commissioning, and application areas of LM guide rails, explaining why they are essential components of high-precision drive systems.
1. LM Guide Rails: The "Stabilizer" of the Drive System

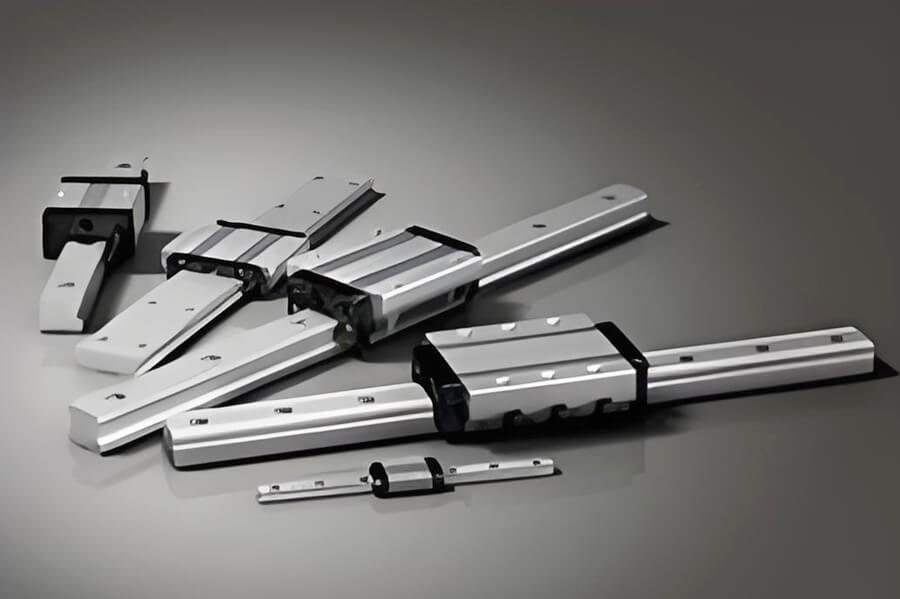

LM guides, short for Linear Motion Guides (LM Guides), are commonly known as linear guides. They do not provide power but simply support and guide the load, acting as the machine's "track," ensuring the load moves straight and steadily.
The core components of an LM guide include:
- Guide Rail: Typically made of high-strength steel, precision-ground and heat-treated to ensure linear accuracy and rigidity.
- Carriage/Block: Contains rolling elements (balls or rollers) that move linearly along the guide rail, achieving smooth linear motion.
- Rolling Elements: Balls or rollers circulate between the guide rail and the slider, reducing friction and improving motion accuracy and lifespan.
- Sealing and Lubrication: These elements prevent dust and impurities from entering while ensuring smooth rolling and long-lasting lubrication.
Through these structural designs, LM guide rails achieve smooth, precise, and low-friction linear motion under varying loads.
2. Core Functions
Precise Guidance: Through structural constraints, loads are constrained to move only along the linear direction of the LM guide rail, preventing deviations such as side-to-side sway and up-and-down tilt (for example, ensuring that a machine tool table does not "drift").
Substantially Reduced Friction: The rolling motion of balls (or rollers) replaces traditional sliding friction, resulting in a friction coefficient of only 0.001-0.003, over 90% lower than traditional sliding guides. This reduces wear and reduces motor power consumption.
3. Typical Structure (Taking the "Ball Linear Guide" as an Example)
The rail (fixed side): Attached to the machine base, its surface features spiral or linear grooves that match the balls, serving as the "track" for the balls to roll on.
The slider (moving side): Attached to the load (such as a worktable or motor base), it houses the balls and a "ball circulation channel." As the slider moves, the balls circulate between the rail grooves and the circulation channel, driving the slider smoothly.
Summary
As a core component of high-precision drive systems, LM guide rails have become an indispensable core technology for modern machinery manufacturing and automation equipment due to their high precision, high rigidity, low friction, long life, and multi-directional load capacity.
