In non-standard automated equipment, whenever linear reciprocating motion is involved, a core component is almost indispensable—the linear motion stage. It is the key foundational module for achieving "straight-line movement, accurate movement, and stable movement" in mechanical equipment. This article will systematically introduce what a linear module is, its common types, their respective characteristics, typical application scenarios, and installation precautions from multiple perspectives.

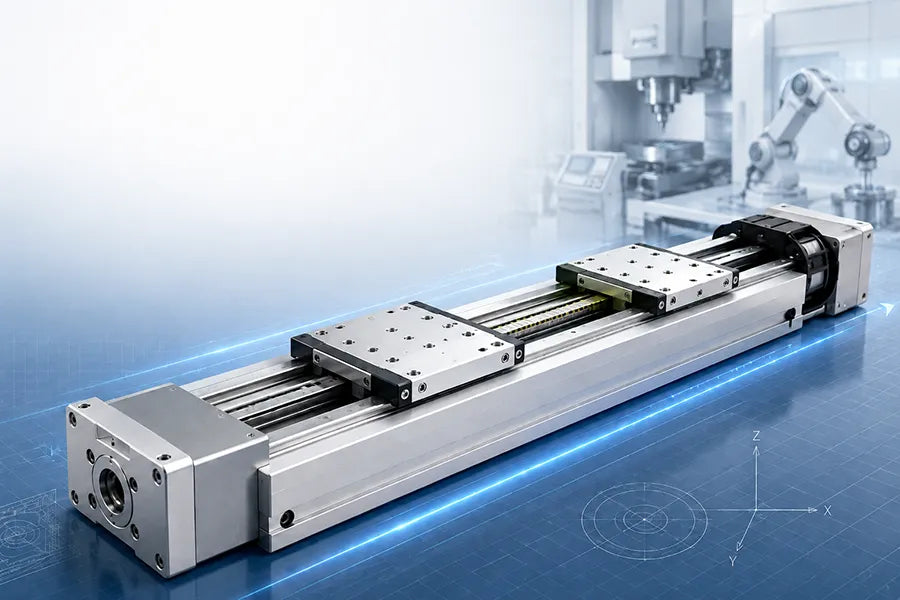

1. What is a Linear Motion Stage?
A linear module (also known as a linear slide or linear unit) is a standardized mechanical unit that converts the rotary motion of a motor into high-precision linear motion.
It typically consists of the following parts: drive element (lead screw or synchronous belt), guide mechanism (linear guide rail or built-in slide rail), transmission components (couplings, pulleys, etc.), load-bearing slider (worktable), and external protective structure (aluminum profile or enclosed housing).
A linear motion stage module = an integrated linear motion solution combining drive, guidance, load bearing, and structure.
2. Common Types of Linear Modules
2.1 Lead Screw Linear Module
Using a ball screw as the transmission core, this is the most common and widely used type.
- Features: High transmission accuracy, good repeatability, suitable for short to medium stroke, high precision applications, good rigidity, and strong load-bearing capacity.
- Disadvantages: Relatively limited speed, high cost for long strokes, requires lubrication and maintenance.
- Common subdivisions: External guide rail lead screw module, integrated lead screw module with embedded guide rail.
2.2 Synchronous Belt Linear Module
Achieves linear motion through a synchronous belt, emphasizing speed and stroke advantages.
- Features: Can have very long strokes, high operating speed, relatively lightweight structure, lower cost than long stroke lead screws.
- Disadvantages: Lower precision than lead screws, belts have elasticity and weaker rigidity, requires attention to belt wear over long-term use.
- Suitable for: High-speed handling, large-stroke reciprocating motion, and workstations with less stringent precision requirements.
2.3 Gear and Rack Linear Module (less common)
Achieves linear motion through the meshing of gears and racks, mostly used for heavy loads or ultra-long strokes.
- Features: Can withstand large loads, almost unlimited stroke, suitable for large equipment.
- Disadvantages: Generally low accuracy, relatively high noise, complex structure, high debugging requirements.
2.4 Electric Cylinder (Servo Electric Cylinder)
Strictly speaking, it belongs to linear actuators, but in applications it is often selected together with linear modules.
- Features: High integration, large thrust, simple control, suitable for point-to-point linear motion.
- Disadvantages: Limited stroke, less flexible than standard modules.
3. Comparison of Core Features of Different Linear Modules
From a selection perspective, four key words can be considered:
- Precision: Screw module > Electric cylinder > Synchronous belt module;
- Speed: Synchronous belt module > Electric cylinder > Screw module;
- Stroke: Synchronous belt module ≈ Gear and rack > Screw module;
- Load Capacity and Rigidity: Screw module > Electric cylinder > Synchronous belt module.
4. Typical Application Scenarios of Linear Modules
In non-standard automation, linear modules are almost ubiquitous, for example: loading and unloading mechanisms, dispensing, spraying, welding linear axes, bonding, pressing, positioning platforms, scanning axes of inspection stations, XYZ three-axis, core axes of gantry structures.
Common combination forms: Single-axis linear module, XY cross module, XYZ three-axis module, gantry dual-drive structure. V. Installation Methods and Precautions for Linear Modules
4.1 The Mounting Surface Must be Reliable
The mounting surface of the module should be flat, sufficiently rigid, and not deform during equipment operation. An unreliable mounting surface is the primary cause of module accuracy failure.
4.2 Pay Attention to Parallelism and Coaxiality
Especially when using multi-axis combinations or parallel operation of two modules: Parallelism of the guide rails, coaxiality of the drive shafts, and synchronization of the left and right modules are crucial. Excessive deviation can lead to jamming or, in severe cases, direct damage to the lead screw or guide rails.
4.3 The Load Must Fall Within a Reasonable Force Range
During the design phase, pay attention to whether the load is eccentric, whether it generates additional torque, and whether it exceeds the module's allowable torque range.
If necessary, address this by: increasing the module size, parallel operation of two modules, or adding auxiliary guides to distribute the load.
4.4 Reserve Safety Space at Both Ends of the Stroke
The module design should include: mechanical limits, stroke buffers, and sensor installation positions to prevent hard collisions at extreme positions.
4.5 Lubrication and Protection Cannot Be Ignored
Even maintenance-free modules require consideration of: the presence of dust, oil, or corrosion in the operating environment, and whether a protective cover or bellows cover is needed.
Many module lifespan issues are not due to incorrect selection, but rather inadequate protection.
Summary
Linear motion stages are core automation components used to achieve precise linear movement, widely applied in industrial manufacturing, laser processing, CNC, semiconductors, and other fields. They achieve stable, controllable, and high-precision linear motion through a combination of guide rails, sliders, lead screws, synchronous belts, linear motors, and control systems.
